Applications

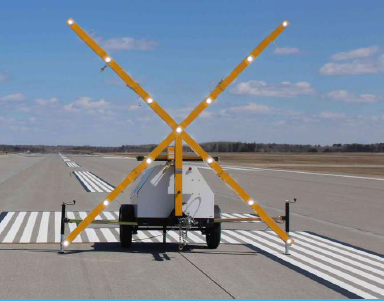

The Hali-Brite ® ICAO Compliant Runway Closure Marker is an effective and efficient method of warning pilots of closed runways and taxiways. A diesel engine powers 13 forward facing LED spotlights that form an illuminated “X” that can be seen as far as 25 miles. The trailer-mounted unit is easily towed behind a vehicle.
Compliance with Standards
ICAO Annex 4, Volume 1, Amendment 18
Features of Our Runway Closure Marker
- Easily set up by one person in less than 5 minutes,
without tools - External power compatible, Lighted X can be powered from an external power source from 120 to 277v 50/60Hz
- 50,000hr built in LED lamps. Never change a bulb
- Reliable diesel engine with shore power
- 140+ hour runtime between fueling
- Wind tested to 95mph
- 2 year/2000 hour engine warranty
- Visible 10-25 miles from runway under VFR
- Photocell dimming for night operation
- Four rear-mounted lamps allow visual monitoring
from rear side - DOT compliant trailer with lights
- Four 2000 lb. leveling jacks
- Highway towable, with a standard 2 ” hitch
- Compact transporting and storage design
Options
- Optional Rear Hitch for tandem towing
- Optional Cover
- Optional Extended service kit
- Optional Pintle hitch
- Optional Oil Drain Kit for easier oil changes
- Optional 24hr Battery Backup: Lighted “X”
automatically switches over to battery power
when generator power is lost or turned off
manually. Fuel saving and emergency backup!
Light Assembly Specifications
- Arm length 6.1 meters when operating
- Hinged to generator housing, swings upright for use,
swings to horizontal position when stowed - Assembly arms fold to a 5’x5’ square for transport
and storage - Arms constructed of 4”x4” extruded aluminum, with
yellow epoxy powder-coat paint. - 13 LED lamps mounted in front, plus 4 monitor
lamps in rear - LED lamp, 20 degree beam width, rated life 50,000
hour typical - Lamps flash 1 second on, 1 second off
- Solid-state flasher, fails to “on”
- Photocell automatically reduces intensity at night
- 4 year warranty on lamps
- Maximum Power: 630 watts, 643VA at 120VAC
Engine and Generator Specifications
- Engine: Mitsubishi Motor, 12.7 hp, 3-cylinder, liquid
-cooled, 4-stroke, 1800 RPM, electric start - Engine Warranty: 2 years/2000 hour
- Glow plugs and elapsed hour meter
- Low oil/high temperature auto-shutdown
- Generator: Marathon Electric, 6.0 kW, 120 VAC, 4-pole,
brushless - Fuel tank capacity 57 gal., consumption 0.4 gph,
140 hour runtime
Specifications
- Width:67″ Length:117″ Height:69″
- Total dry weight 1405 lbs
- Total wet weight 1804 lbs
- International; Fully Crated 2050 lbs
Width:72″ Length:96″ Height:79″
Worldwide shipping available!
